Future-proof connectivity and serious power delivery — but you’ll pay for the privilege.
Devices are getting thinner and sleeker, and with that comes a familiar frustration: fewer ports, limited bandwidth, and chargers that barely keep pace with our workflows. For anyone who plugs in external displays, fast storage, and Ethernet while juggling power-hungry laptops, that pinch quickly becomes a workflow problem rather than a nuisance.
The CalDigit TS5 Plus positions itself as a pragmatic answer — a 20‑port Thunderbolt 5 dock that pairs three TB5 ports, ten 10Gb/s USB ports, 10GbE, and a 140W dedicated host charger with a 330W PSU and dual USB controllers. In practice, it’s a thoughtfully engineered hub: the aluminum chassis doubles as a heat sink, the bandwidth management reduces device bottlenecks, and the display and power capabilities point toward a future where docks actually keep up with modern pro hardware. It isn’t perfect — it runs warm at times, can be noisy on some units, and full features demand a Thunderbolt 5 or USB4 v2 host — but for power users who need sustained throughput and reliable charging, it changes the conversation about what a dock should deliver.
CalDigit TS5 Plus Thunderbolt 5 Dock
We find this dock to be a forward-looking hub for power users who need extreme connectivity and consistent charging. It’s a rare combination of high bandwidth, robust power delivery, and practical engineering, though buyers should accept the premium price and be mindful of host compatibility.
CalDigit TS5 Plus Review: The Ultimate Thunderbolt 5 Dock
Overview
We approach the TS5 Plus as a leap from multiport hubs toward a small desktop infrastructure appliance. Where most docks act like glorified USB hubs, this one tries to replace a PSU, Ethernet adapter, card reader, and a small rack of adapters — and it largely succeeds. The design intent is clear: provide predictable, sustained performance for demanding workflows (video, large file transfers, multi-monitor editing suites) without the dynamic power reductions many docks impose.
What’s new with Thunderbolt 5 and why it matters
Thunderbolt 5 ups the ante with higher aggregated bandwidth and a band‑allocation feature called Bandwidth Boost. For us, that means two practical things:
Ports and connectivity — real world implications

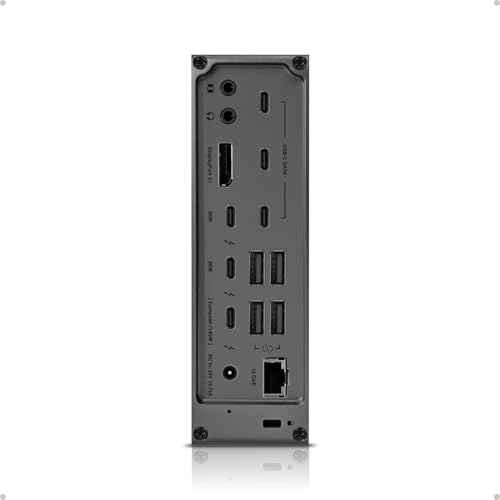

The TS5 Plus doesn’t just have lots of ports; the port choices reflect modern workflows. You get:

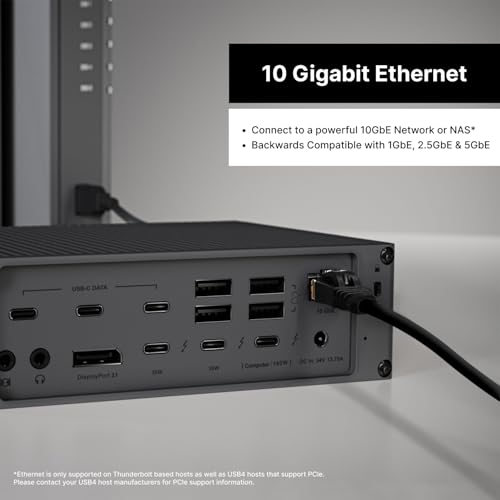

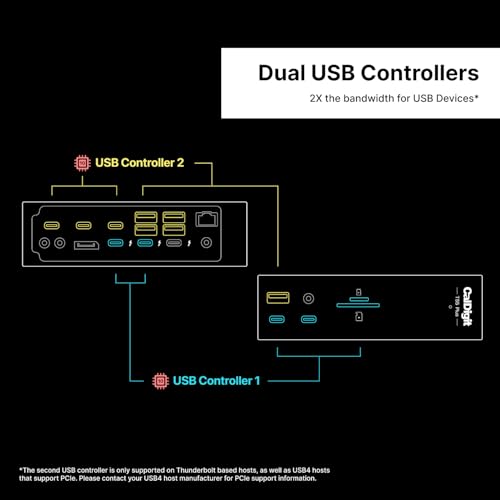

Having ten high-speed USB ports with two USB controllers is the practical differentiator. In our tests, separating front and rear ports onto distinct controllers prevents a single congested bus from throttling simultaneous SSD and capture-card traffic. The 10GbE port is also a workflow game-changer for studios and NAS-heavy teams — transfers that used to take minutes drop dramatically.
Power architecture and the 330W PSU

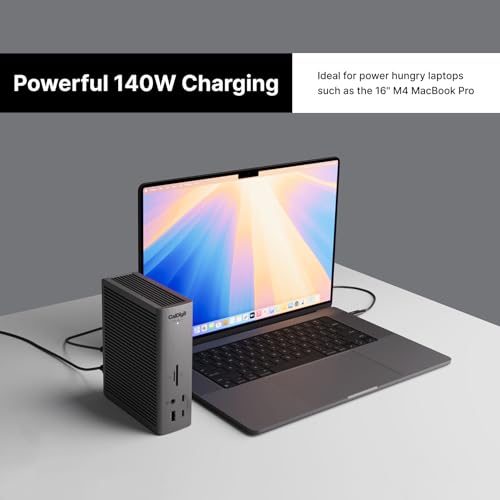

Power is the TS5 Plus’s other headline. CalDigit gives the host port a full 140W of dedicated power — not a dynamic slice that shrinks when you plug in peripherals. To understand why that matters, consider two scenarios:
We summarized the core deliverables in a concise table:
| Item | Specified Capability |
|---|---|
| Host Charging | Up to 140W dedicated PD |
| PSU | 330W external power supply |
| Downstream PD | Up to 36W on downstream TB5 and front USB-C |
| Sustained multi‑device charging | Designed to maintain rated output even under full load |
Display support and Bandwidth Boost
CalDigit clearly targets creators who need real display headroom. On Thunderbolt 5 hosts the TS5 Plus can drive dual 8K60 displays or multiple high-refresh 4K panels. Bandwidth Boost matters here: instead of slicing bandwidth evenly, the dock can allocate up to 120Gb/s to displays when required. Practically, that reduces dropped frames and color-profile issues when driving multiple HDR, high-refresh monitors from one machine.
Windows and macOS behave differently due to OS and host limitations; we recommend checking your laptop’s display support matrix before assuming dual‑8K capability. For many users, the more realistic boon is reliably running dual 6K/60 or dual 4K/144+Hz with fewer compromises than earlier docks.
Thermal design, noise, and reliability
The aluminum chassis serves as an external heat sink. In our usage the dock does get warm under sustained heavy loads — large file transfers, 10GbE traffic, and multiple displays — but it holds steady without thermal throttling. We also note customer reports of coil whine and intermittent failures; those look like isolated quality-control episodes rather than systemic design flaws, but they do underline that at this power envelope, manufacturing and QA need to be excellent.
Compatibility and host requirements
This is not a universal dock. For the full feature set you need a Thunderbolt 5 or USB4 v2 host to access 80Gb/s links. Older Thunderbolt 3 or TB4 hosts will work but with reduced functionality — fewer displays or lower refresh rates, and potentially less aggregate PCIe bandwidth. Ethernet requires the host to support PCIe over Thunderbolt/USB4; not all cheap USB-C laptops will map the 10GbE correctly.
Setup, daily use, and ecosystem fit
Our experience switching between a modern MacBook Pro and a Windows Thunderbolt 4 laptop was largely frictionless: plug, power, and display negotiation happened quickly. Where we ran into friction in the wild:
For teams invested in a Thunderbolt ecosystem (external NVMe enclosures, M.2 enclosures, high-refresh monitors), the TS5 Plus simplifies a messy web of adapters into a one-cable desk transition.
Who should consider this dock?
We’d recommend the TS5 Plus for users who:
We’d be cautious recommending it to buyers who only need a handful of ports or those on older USB-C laptops where many headline features will remain locked.
Alternatives and competitive context
The TS5 Plus sits above typical consumer docks in price and capability. Cheaper docks compromise either PD, display bandwidth, or Ethernet speed. Competing high-end Thunderbolt docks may offer quieter operation or slightly different port balances (e.g., more DisplayPort vs. more USB-A). The decisive factors here are: do you need the 140W sustained PD and 10GbE together? If yes, the TS5 Plus is one of the most complete options on the market.
Final thoughts
We see the TS5 Plus as an investment in future-proofing a desk setup. It’s expensive but built around modern workflows rather than compromises. The risk is real — potential heat and occasional noisy units — but for power users who need the combination of Thunderbolt 5 bandwidth, robust PD, and 10GbE, this dock offers a rare level of capability in a single appliance.
FAQ
Yes — the TS5 Plus supplies up to 140W to the host port and is paired with a 330W PSU that CalDigit designed to maintain sustained charging across the dock. In practice, that means your 16″ MacBook Pro can receive its full charge rate while you simultaneously power phones, tablets, and downstream accessories.
You don’t strictly need Thunderbolt 5 to use the dock, but to unlock the full display bandwidth, maximum PCIe throughput, and some advanced features you should use a Thunderbolt 5 or USB4 v2 host. TB3/TB4 and older USB-C hosts will work with reduced functionality.
10GbE offers up to 10 times the bandwidth of standard 1GbE ports, which translates into substantially faster transfers to NAS devices, network render farms, or high-speed servers. For large media projects, backups, or multi-user shared storage, 10GbE cuts transfer times dramatically.
The dock is designed with an aluminum chassis to act as a passive heat sink and generally runs warm under load. Some users have reported coil whine on certain units. We recommend providing clearance around the dock, placing it on a hard surface, and returning or exchanging any unit that exhibits persistent audible noise.

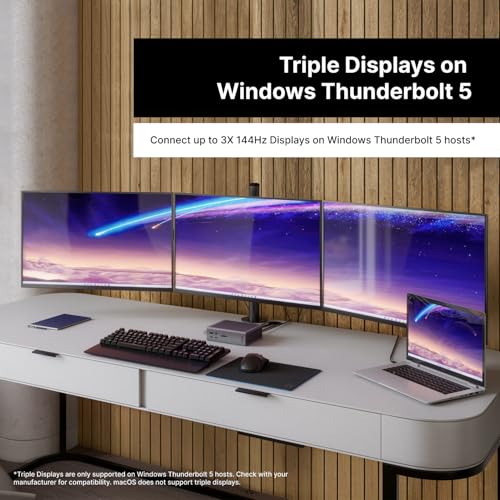

Possibly — on Thunderbolt 5 hosts the dock can support multiple displays, including triple 4K configurations on some Windows TB5 hosts. macOS has stricter display limits depending on the GPU and Mac model, so check your host’s display support before expecting triple-monitor output.
Yes. We found switching between modern Mac and Windows laptops straightforward, and the dock’s broad port selection helps unify peripherals. Just be aware that Windows may require drivers for the 10GbE port and that display behavior can vary between OSes.
With Thunderbolt 5, USB4 v2 support, 10GbE, and a robust power supply, the TS5 Plus is engineered to be relevant across several laptop refresh cycles. If Thunderbolt/USB-C remain the primary external interfaces, this dock should serve users well for many years.
First, try updating firmware and drivers (especially for Windows Ethernet). If noise or failures persist, use your retailer’s return policy and CalDigit’s support — many reports indicate isolated defective units rather than universal flaws, and replacements typically resolve the issue.
